Performance Magnetic Oil Filter for Harley-Davidson Pan America - Silver

Filter more impurities than the competition with the only oil filter that has a powerful magnet on the inside. High-grade anodized aluminum housing integrates 4 external pre-filtering magnets, superfine stainless-steel mesh, and a powerful internal neodymium rare-earth magnet—a combination that filters particles down to a staggering 25 microns. With cleanable, reusable components and a flow rate 10 times greater than traditional paper filters, Figurati Designs® Performance Magnetic Oil Filter is the future of filtering.

FEATURES

• 6063 lightweight, high-strength anodized aluminum
• Powerful internal neodymium magnetic filtration
• 4 external pre-filtering magnets

• Cleanable and reusable
• Environmentally friendly

SPECS

• Filter level: 25 microns
• Filter Material: Stainless-steel and Aluminum

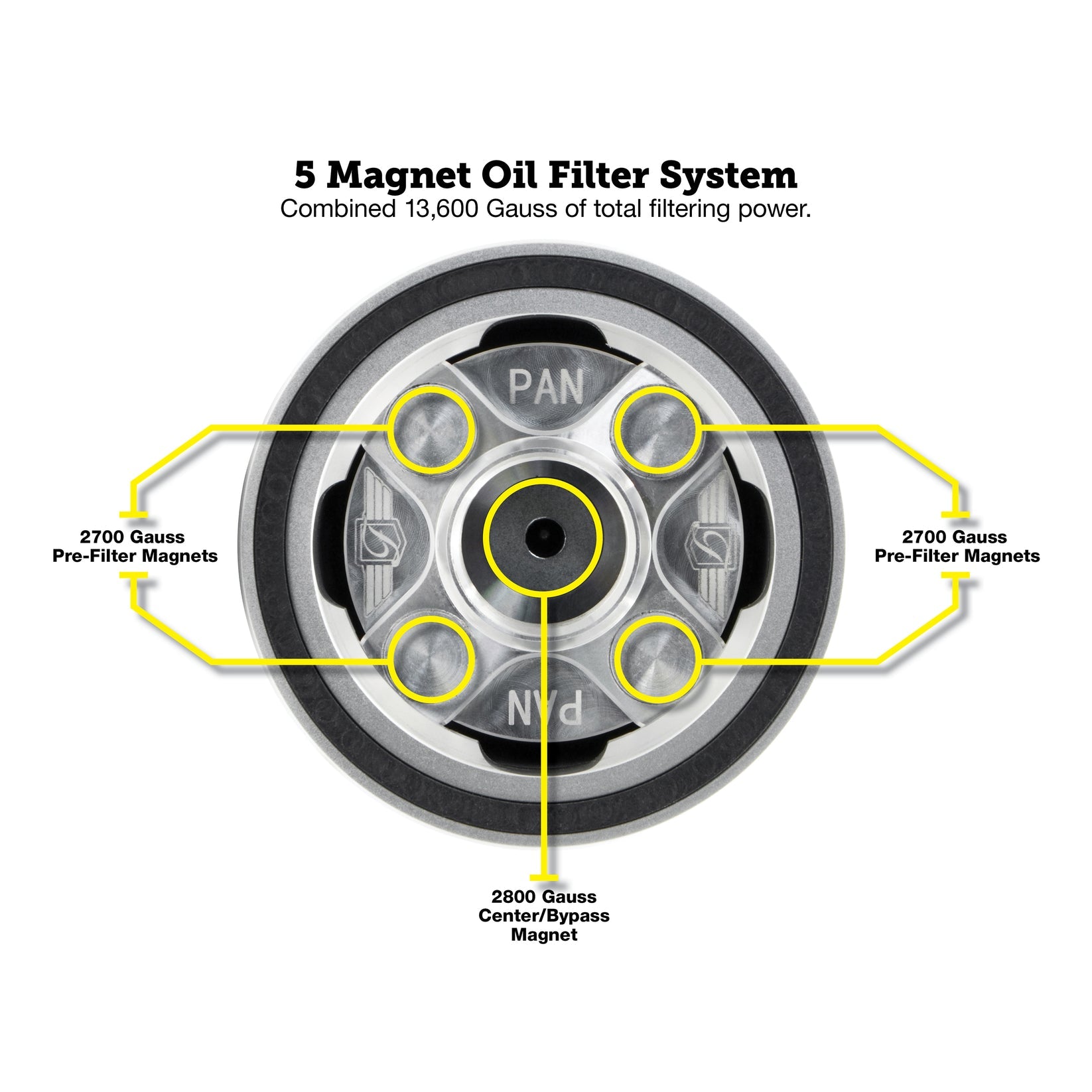

• Magnet Strength:
  • Internal Magnet: 2800 gauss
  • External Magnets: 2700 gauss *4
• Pressure relief valve threshold: 15 PSI


Cleaning instructions

1. Unscrew top nut
2. Remove ball bearing, spring, and 2800 gauss center/bypass magnet
3. Wipe down housing and components with a microfiber cloth
4. Replace components
5. Reinstall filter

FITMENT
